MAT Series

For Automotive Application

Night Vision
Front View Camera
Driver Record
Driver Monitor
Cabin Monitor
Surround View Camera
Park Assist
Rear View Camera
Smart Watch Camera
ADAS
MetaSilicon’s image sensors are the core components of the automotive perception layer.Convert the real world into image information to provide guarantee for the vehicle to understand the surrounding environment, formulate driving operations, and provide accurate, timely and sufficient basis for advanced assisted driving system decision-making.
MAT series products meet the requirements of vehicle regulations and will cover various resolutions such as 1.3MP, 3MP, 8MP, and 14+MP, and can be used in Automotive applications such as electronic rearview mirrors, 360° surround view, and advanced assisted driving (ADAS). With the support of self-developed ultra-low noise and power consumption reading circuits, unique MTSEx high dynamic HDR and other technologies, it provides low power consumption, high sensitivity, high dynamic range, and high frame rate car specifications for smart vehicle applications.
Optical FormatResolutionPixel SizeFrame RatePower SupplyFile
MAT130
1/3.7 inch1.3MP3.0μm × 3.0μm
30fps @1280 × 960
Analog: 2.8V @AVDD
Digital: 1.2V @DVDD
IO: 1.8V @DOVDD
Download
MAT330
1/2.4 inch3.0MP3.0μm × 3.0μm
60fps @1920 × 1080
45fps @1920 × 1536
Analog: 2.8V @AVDD
Digital: 1.2V @DVDD
IO: 1.8V @DOVDD
Download

MT Series

For Consumer Application

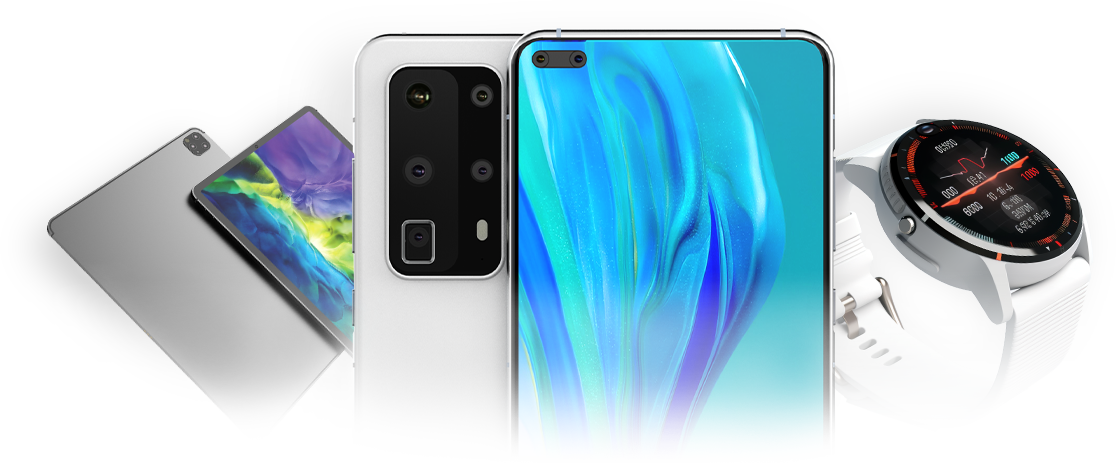

Tablet Camera
Smart Phone Front/Rear Cameras
Tablet Camera
MT Series are CMOS image sensor products for smart consumer applications. It can provide high-quality image for terminal smartphone front/rear cameras, tablet front/rear cameras, smart watches, laptops and other consumter applications. MT series products will cover many resolutions such as 8MP, 13MP, 50MP, etc. Based on MetaSilicon self-developed innovative technology, we strive to bring high-definition, excellent color, and high-dynamic imaging performance to consumer application terminals.
Optical FormatResolutionPixel SizeFrame RatePower SupplyFile
MT510
1/5 inch5.0MP1.12μm × 1.12μm
30fps @Full size
Analog: 2.8V @AVDD
Digital: 1.2V @DVDD
IO:1.8V/1.2V @DOVDD
Download
MT815
1/4 inch8.0MP1.12μm × 1.12μm
30fps @Full size
Analog: 2.8V@AVDD
Digital: 1.2V @DVDD
IO: 1.8V/1.2V @DOVDD
Download
